VBA Cell Borders

Written by

Editorial Team

Reviewed by

Steve Rynearson

Last updated on July 19, 2021

This tutorial will show how to adjust cell border settings in VBA.

Formatting Borders

Top Border – Double Line

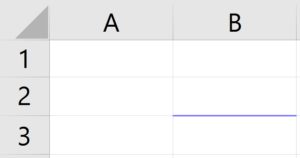

First let’s look at an example of how to set a blue, thick, doubled top border to the cell B3 on Sheet1:example border

Sub ExampleSetBorder()

 With Worksheets("Sheet1").Range("B3").Borders(xlEdgeTop)
  .LineStyle = xlDouble
  .Weight = xlThick
  .ColorIndex = 5
 End With

End Sub

Notice we use a With Statement to simplify our coding.

We access the the top border with .Borders(xlEdgeTop).

Other Cell Borders

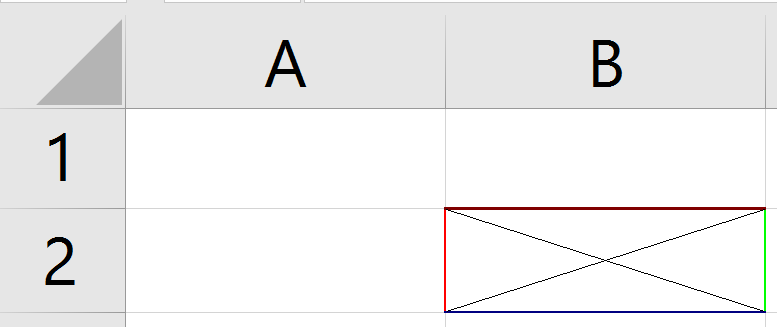

Instead you can access other borders, including diagonals:

Worksheets("Sheet1").Range("B2").Borders(xlEdgeTop).Color = RGB(128, 0, 0)
Worksheets("Sheet1").Range("B2").Borders(xlEdgeRight).Color = RGB(0, 255, 0)
Worksheets("Sheet1").Range("B2").Borders(xlEdgeBottom).Color = RGB(0, 0, 128)
Worksheets("Sheet1").Range("B2").Borders(xlEdgeLeft).Color = RGB(255, 0, 0)
Worksheets("Sheet1").Range("B2").Borders(xlDiagonalDown).Color = RGB(0, 0, 0)
Worksheets("Sheet1").Range("B2").Borders(xlDiagonalUp).Color = RGB(0, 0, 0)

border example2

Inside Borders

You can also adjust horizontal (xlInsideHorizontal) and vertical (xlInsideVertical) borders for all cells in a range:

With Worksheets("Sheet1").Range("B2:C6").Borders(xlInsideHorizontal)
 .LineStyle = xlDashDotDot
 .Weight = xlMedium
 .ColorIndex = 3
End With

inside horizontal borders

LineStyle

The LineStyle property can be changed to xlContinuous, xlDot, xlDash, xlDashDot, xlDashDotDot, xlDouble, xlSlantDashDot and xlLineStyleNone.

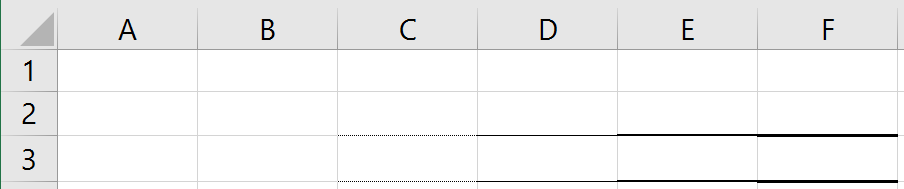

The Weight property can be either xlHariline, xlThin, xlMedium and xlThick. You will have this result with the code below:

Worksheets("Sheet1").Range("C3").Borders(xlEdgeTop).Weight = xlHairline
Worksheets("Sheet1").Range("C3").Borders(xlEdgeBottom).Weight = xlHairline
Worksheets("Sheet1").Range("D3").Borders(xlEdgeTop).Weight = xlThin
Worksheets("Sheet1").Range("D3").Borders(xlEdgeBottom).Weight = xlThin
Worksheets("Sheet1").Range("E3").Borders(xlEdgeTop).Weight = xlMedium
Worksheets("Sheet1").Range("E3").Borders(xlEdgeBottom).Weight = xlMedium
Worksheets("Sheet1").Range("F3").Borders(xlEdgeTop).Weight = xlThick
Worksheets("Sheet1").Range("F3").Borders(xlEdgeBottom).Weight = xlThick

border weight

Border colors can be set as ColorIndex or Color (RGB, serial number or vbColor). See more information about color settings here.

You can add borders around a range with a one-line command as well:

Range("B5:C7").BorderAround LineStyle:=xlContinuous, Weight:=xlThick, Color:=vbRed
